Geometry graphs
Procedural shape builder
Connect curves, repeated shapes, and mesh modifiers to build lamps, stairs, and pavilions.
Try it
All editing and processing stays in your browser.
Getting started
- Choose a lamp, stair, or pavilion graph.
- Select a node to edit its parameters, or add a modifier to its output.
- Connect inputs, export the graph, or save the resulting mesh.

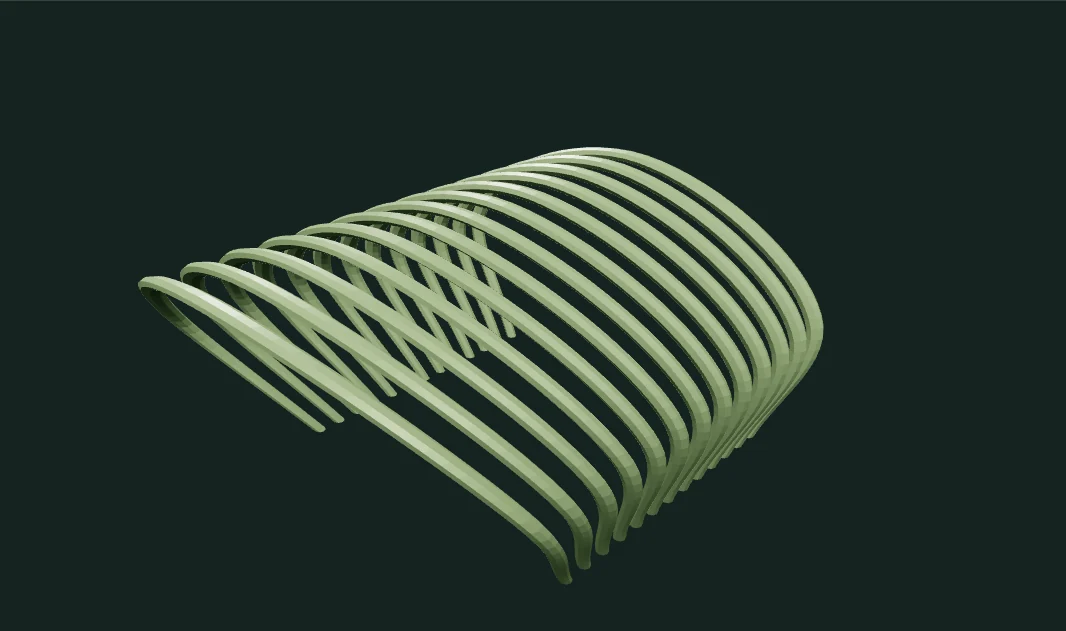

Made with this tool
Examples captured from the running editor.
Implementation and limits
Connect geometry operations to make turned objects, repeating structures, and curved forms. Every change rebuilds the mesh.
- A bounded geometry graph, not a complete CAD system.
- Modifiers operate on mesh vertices; highly bent low-resolution shapes can fold over.
- Repeated pieces are combined into one mesh without Boolean union.
